Product Description

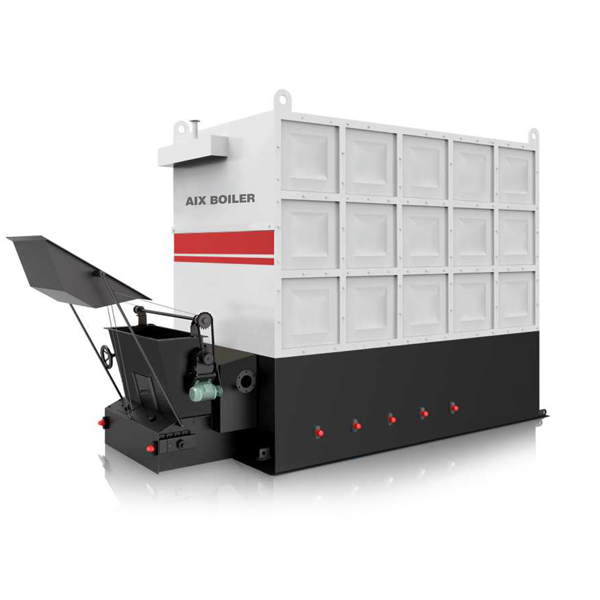

AIXBOILER, a leading A-GRADE boiler manufacturer in China with over 45 years of expertise since 1978, offers biomass/coal fired thermal oil boilers (thermal fluid heaters). These systems heat organic thermal oils in closed loops to high temperatures (up to 400°C) at low pressure using solid fuel combustion, providing safe, uniform indirect heating.
Manufactured in our advanced facility in Taikang Industrial Park, Zhoukou City, Henan Province—the “Hometown of Boilers”—AIXBOILER boilers feature helical coil designs for optimal heat transfer, chain or reciprocating grates for reliable fuel burning, and large furnaces for complete combustion. Fuels include various coals, biomass pellets, wood chips, rice husk, straw, and agricultural wastes—enabling renewable, cost-effective operations.
Ideal for high-temperature processes in chemicals, petrochemicals, plastics, textiles, food frying, asphalt, and plywood industries. AIXBOILER focuses on sustainability with efficient combustion and emission controls, exporting eco-friendly solutions to over 80 countries.
Key Features and Benefits
- Fuel Versatility → Coal, biomass, or co-firing for flexibility and renewable use.
- High Temperature Stability → Precise control (±1°C) in closed-loop systems.
- Energy Efficient → Multi-coil design with optional economizers.
- Low Pressure Safety → No explosion risk compared to steam boilers.
- Eco-Friendly → Biomass compatibility and dedusting systems.
- Durable Grate → Automatic ash removal for continuous operation.
Technical Parameters
The table details typical specifications for AIXBOILER biomass/coal fired thermal oil boilers (YLW/YGL series; custom available):
| Parameter | Specification Range | Notes / Standard Models |
|---|---|---|
| Rated Thermal Power | 0.1 MW – 30 MW (100,000 – 30 million kcal/h) | Common: 0.5 – 15 MW |
| Max Fluid Temperature | 320°C – 400°C | Synthetic/mineral thermal oils |
| Working Pressure | Low pressure (0.3 – 1.0 MPa) | Closed-loop system |
| Thermal Efficiency | 80% – 88% | Higher with heat recovery |
| Fuel Type | Coal, Biomass Pellets, Wood Chips, Husk, Straw | Co-firing supported |
| Grate Type | Chain Grate, Reciprocating Grate | Stepless speed adjustment |
| Boiler Structure | Horizontal Coil Type (YLW) or Vertical (YGL) | Helical multi-tube coils |
| Control System | PLC + Touch Screen | Automatic fuel feed and temperature |
| Circulation Pump | High-temperature forced circulation | Multiple pumps optional |
| Dimensions (approx.) | Varies (e.g., 4m – 15m length) | Horizontal/vertical layouts |
| Weight (dry) | 10 tons – 60 tons | Including expansion/storage tanks |
| Emissions | Dust ≤ 50 mg/Nm³, with filters | SO2/NOx control options |
These parameters ensure stable, high-temperature performance with solid fuels.
Design and Construction Standards
AIXBOILER biomass/coal fired thermal oil boilers comply with:
- Primary Standards: GB/T 16508 series (China), optional ASME Section VIII, PED 2014/68/EU
- Materials: High-grade steel coils, refractory lining
- Welding & Inspection: Automated welding, 100% NDT (RT, UT), hydrostatic testing
- Accessories: Expansion tank, deaerator, dust collector, fuel feeder
Optimized for fuel adaptability and minimal fluid degradation.
Applications
AIXBOILER biomass/coal fired thermal oil boilers are applied in:
- Chemical reactors and distillation
- Petrochemical and oil refining
- Plastics, rubber, and fiber processing
- Textile printing and dyeing
- Food oil heating and frying
- Asphalt mixing and storage
- Plywood and MDF pressing
They provide reliable indirect heating with renewable solid fuels.
Quality Assurance and Testing
Each boiler undergoes:
- Thermal circulation and efficiency tests
- Combustion/emission verification
- Full NDT and third-party inspection (TUV, SGS, BV available)
- Fluid charging and system commissioning
Ensuring long-term safety and performance.
Why Choose AIXBOILER?
With family-rooted expertise since 1978, government designation in 2025, and a team of over 60 senior engineers, AIXBOILER offers versatile, sustainable biomass/coal thermal oil solutions. We provide comprehensive services: fuel analysis, custom engineering, manufacturing, installation supervision, and 24/7 maintenance for efficient high-temperature processes worldwide.
Additional views of chain grate mechanisms and coil internals:
The Biomass/Coal Fired Thermal Oil Boiler, produced by AIX Boiler, a Chinese A-grade manufacturer since 1976, is designed to combust biomass or coal, transferring heat via thermal oil for industrial processes like drying, heating, and chemical production. Featuring a coil-based design, it achieves high thermal efficiency (up to 90%), reducing fuel costs. Its robust construction ensures durability, while advanced controls enable easy operation and maintenance. With low emissions and fuel flexibility, it meets environmental standards, making it ideal for industries such as textiles, plywood, and asphalt. AIX’s thermal oil boilers provide reliable, eco-friendly heating solutions.
Specifications
| Model | Rated power(MW) | Rated pressure (Mpa) | Thermal oil temperature(℃) | Thermal efficiency(%) | Thermal oil circulation flow(m³/h) | Fuel comsumption(Kg/h) | max transportation weigh(t) |
|---|---|---|---|---|---|---|---|
| YLW-700 | 0.7 | 0.8/1.0 | 250-320 | ＞83 | 45.7 | 187 | 16.9 |
| YLW-1400 | 1.4 | 0.8/1.0 | 250-320 | ＞83 | 87.4 | 373 | 22 |
| YLW-2400 | 2.4 | 0.8/1.0 | 250-320 | ＞83 | 149.8 | 621.3 | 28.6 |
| YLW-2900 | 2.9 | 0.8/1.0 | 250-320 | ＞83 | 155 | 756 | 24.2 |
| YLW-4200 | 4.2 | 0.8/1.0 | 250-320 | ＞83 | 225 | 989.3 | 30 |
| YLW-5600 | 5.6 | 0.8/1.0 | 250-320 | ＞83 | 336 | 1196 | 33.6 |
| YLW-7000 | 7 | 0.8/1.0 | 250-320 | ＞83 | 383.5 | 1657.4 | 18.2 |
| YLW-8400 | 8.4 | 0.8/1.0 | 250-320 | ＞83 | 536.2 | 1926.2 | 24.3 |
| YLW-10500 | 10.5 | 0.8/1.0 | 250-320 | ＞83 | 686.6 | 2442.6 | 27.5 |
| YLW-14000 | 14 | 0.8/1.0 | 250-320 | ＞83 | 869.1 | 3230 | 31 |
| Note: Parameter is for reference only, if any changes should follow the factory technical data. | |||||||
- Hot Tag
Features
YLW Horizontal coal thermal oil boiler
Coal fired thermal oil boiler, horizontal three pass coil structure, use circulating pump to force the liquid thermal oil circulation,and then transporting the heat to the thermal equipment.
