In the world of small-capacity industrial boilers (typically under 2 tons/h steam output), the vast majority of oil & gas fired models follow a traditional cylindrical (round) shell design. This classic shape—seen in countless WNS-series fire-tube boilers worldwide—has been the industry standard for decades due to its proven pressure-handling capabilities and manufacturing simplicity.
However, AIX Boiler (Henan AIX Boiler Co., Ltd.) deliberately breaks from convention with a square (rectangular) shell design in many of our compact oil & gas boilers under 2 tons. This isn’t just a cosmetic choice—it’s a thoughtful engineering decision rooted in 45+ years of boiler expertise, aimed at delivering superior performance, easier integration, and better value for modern industrial users.
In this blog, we’ll explore why most boilers remain round, what makes AIX Boiler‘s square design unique, and the real-world advantages it brings to food processing, textiles, pharmaceuticals, small chemical plants, hospitals, and other facilities needing reliable, space-efficient steam or hot water.
Traditional Round Shell: Why It’s the Default (and Its Limitations)
Cylindrical shells excel at one core task: evenly distributing internal pressure. The hoop stress in a perfect cylinder is uniform, allowing thinner walls for the same pressure rating compared to other shapes (a principle rooted in basic pressure vessel mechanics). For high-pressure applications or large capacities, round is often unbeatable.
For small oil & gas boilers (0.5–2 t/h), round shells are common because:
- They simplify welding and fabrication.
- They provide good natural circulation in fire-tube designs.
- They offer a large steam disengaging area for decent steam quality.
But in compact installations—where floor space is tight, doors are narrow, or the boiler needs to fit into existing layouts—round designs reveal drawbacks:
- Bulky footprint with wasted corner space.
- Difficult maneuvering through doorways or corridors.
- Challenging to position close to walls or in corners.
- Less flexible for modular or skid-mounted setups.

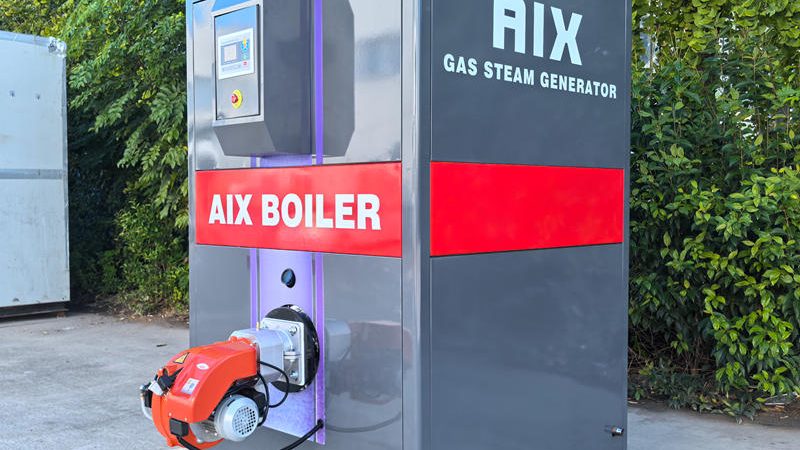

AIX Boiler’s Square Shell Design: Engineered for the Real World
AIX Boiler‘s square/rectangular shell boilers (often in our compact CWNS hot water or small WNS/LSS steam series under 2 tons) feature a robust, reinforced rectangular outer shell combined with optimized internal fire-tube bundles and furnace arrangements.
This design draws inspiration from modular and space-optimized systems while maintaining full compliance with Chinese A-grade standards, ISO, CE, and pressure vessel regulations.
Key structural highlights:
- Reinforced flat panels with internal stay rods, bracing, and calculated stress distribution to handle pressure safely.
- Optimized tube layout inside the square shell for maximum heat transfer surface.
- Compact furnace chamber with high-efficiency imported burners (low-NOx options available).
- Integrated economizer or flue gas heat recovery in many models.
The result? A boiler that looks “box-like” but performs exceptionally in small-to-medium applications.
Core Advantages of AIX Boiler’s Square Design
- Significantly Smaller Footprint and Better Space Utilization A square or rectangular shape uses available floor area more efficiently—no wasted curved “dead zones” around the edges. In tight boiler rooms, plant expansions, or retrofits, this can save 20–30% of floor space compared to an equivalent round boiler. Flat sides also allow the unit to sit flush against walls or in corners, maximizing layout flexibility.
- Easier Transportation, Installation, and Access Round boilers are awkward to move through standard doorways (often requiring diagonal tilting or door removal). Square designs slide straight through most industrial doors (typically 800–1200 mm wide) and are simpler to forklift or crane into position. Flat panels make external access for inspection, cleaning, and maintenance much easier—no awkward reaching around curves.
- Improved Modular and Skid-Mounted Flexibility For clients needing quick deployment (e.g., temporary steam supply, rental units, or containerized systems), square boilers integrate seamlessly into skids, containers, or modular plants. The flat surfaces simplify piping connections, valve placement, and control panel mounting.
- Enhanced Heat Transfer and Efficiency in Compact Volumes The internal layout in a square shell allows for more strategic placement of fire tubes and reversal chambers. AIX Boiler engineers often achieve higher heating surface density per unit volume, contributing to thermal efficiencies of 92–95%+ (especially with condensing options). The design also supports better flue gas flow patterns, reducing hot spots and improving uniform heating.
- Lower Shipping and Site Costs Square/rectangular units are more compact for export crating and container loading—critical for AIX Boiler‘s global customers in 80+ countries. On-site, reduced foundation requirements and simpler alignment save installation time and labor.
- Modern Aesthetics and Safety Integration The clean, box-like appearance fits well in contemporary facilities (food/pharma clean zones). Flat surfaces make it easier to add external insulation, cladding, or safety guards uniformly.
When to Choose AIX Boiler’s Square Design
- Space-constrained sites (urban factories, hospitals, hotels).
- Frequent relocation or modular setups.
- Retrofits where existing round boilers are being replaced.
- High-efficiency small steam/hot water needs (0.5–2 t/h) with oil/gas fuels.
For very high-pressure or ultra-large capacities, round shells still dominate due to stress distribution—but for the under-2-ton segment, AIX Boiler‘s square approach offers tangible, practical edges without compromising safety or performance.
Conclusion: Innovation Where It Matters Most
While the industry clings to round shells out of tradition, AIX Boiler proves that thoughtful redesign can deliver real benefits. Our square oil & gas boilers under 2 tons combine compact intelligence, installation ease, space savings, and high efficiency—helping clients reduce footprint, cut setup costs, and achieve reliable operation with lower long-term hassle.
If you’re evaluating small oil/gas boilers and tired of wrestling with bulky round designs, consider AIX Boiler‘s square series. Backed by A-grade certification, advanced manufacturing, and proven performance in diverse industries, it’s a smarter choice for today’s space-conscious world.
Ready to see how a square boiler can transform your setup? Contact the AIX Boiler team today:
- Email: [email protected]
- Website: https://www.aixboiler.com
- WhatsApp/WeChat: +86 135 9805 9888
- Global 24/7 Support: We’re ready to discuss your project, provide drawings, and deliver a tailored quote.
Choose AIX Boiler—where practical innovation meets industrial reliability.
