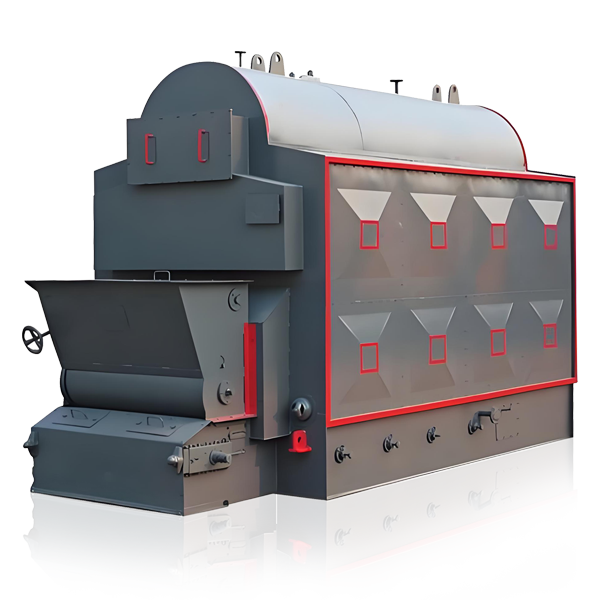

The Biomass/Coal Fired Hot Water Boiler, manufactured by AIX Boiler, a Chinese A-grade producer since 1976, combusts biomass or coal to produce hot water for industrial and commercial heating. Its advanced combustion system achieves thermal efficiency up to 88%, reducing fuel costs. The robust, water-tube or fire-tube design ensures durability, with automatic controls for easy operation and low maintenance. Designed for low emissions, it meets environmental standards, making it ideal for industries like textiles, food processing, and district heating. AIX’s hot water boilers deliver reliable, eco-friendly heating solutions.
| Our Products | Steam Boiler, Steam Generator, Hot Water Boiler, Thermal Oil Boiler, Thermic Fluid Heater, Hot Air |
| Furnace Capacity | 48kw-28000kw |
| Fuel | woodchips, wood pellet, biomass, coal, solidwaste |
| Usage | For Industrial water heating system, Factory productions process Manufacture |
DZL boiler is automatic wood feeding boiler, with Chain Grate stoker with single drum & fire tubes & water tubes.
DZH manual wood boiler, with travelling grate (strong adaptability for agro waste) & single drum & fire-tubes water-tubes.
1. Smoke and dust separator chamber
Separate smoke and dust according to inertia,reduce the original effluent concentration of soot.
2. Optimized design CAD
Choose the best furnace from dozens of options,improve economical efficiency.
3. Convex tube plate
1) Improve tube plate flexibility, so as to reduce the heating stress of welded sew at the pipe end.
2) Prevent tube plate cracking, cancel bracing,simplify the structure.
4. Large size of simple circulation loop drop pipe and lower set box
Increase the flow rate of water on water cooling wall in order to prevent subcooled boiling. To prevent pipe explosion,Increase the reliability of water cycle
5. New pattern of furnace arch
Strengthen the combustion, could burn kinds of fuel: wood, coal and biomass, improve combustion efficiency.
It can be applied to the municipal gas pipeline, oil refineries, chemical plants in petroleum and petrochemical industry, metallurgical industry, power industry or any place that is possible to have gas leakage.
City Lifeline
City Lifeline
City Lifeline
City Lifeline
| Vertical Hot Water Boiler Technical Parameter Data | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Item | CLSG 0.06-95/70 | CLSG 0.12-95/70 | CLSG 0.24-95/70 | CLSG 0.35-95/70 | CLSG 0.5-95/70 | CLSG 0.6-95/70 | CLSH 0.7-95/70 | CLSH 1.05-95/70 | CLSH 1.4-95/70 |
| Rated Capacity (KW) | 60 | 120 | 240 | 350 | 500 | 600 | 700 | 1050 | 1400 |
| Working Pressure | Atmospheric pressure | ||||||||
| Hot Water Temperature(℃) | 95℃/85℃ | ||||||||
| Return Water Temperature(℃) | 70℃/60℃ | ||||||||
| Thermal Efficiency % | ≥82% | ||||||||
| Dimension(mm) | 800*2200 | 900*2600 | 1100*2800 | 1212*3420 | 1310*3780 | 1416*3780 | 1612*4420 | 1812*5200 | 2016*5300 |
| Weight (kg) | 380 | 550 | 900 | 1893 | 3120 | 3650 | 3821 | 4800 | 5700 |
| Note: Parameter is for reference only, if any changes should follow the factory technical data. | |||||||||
